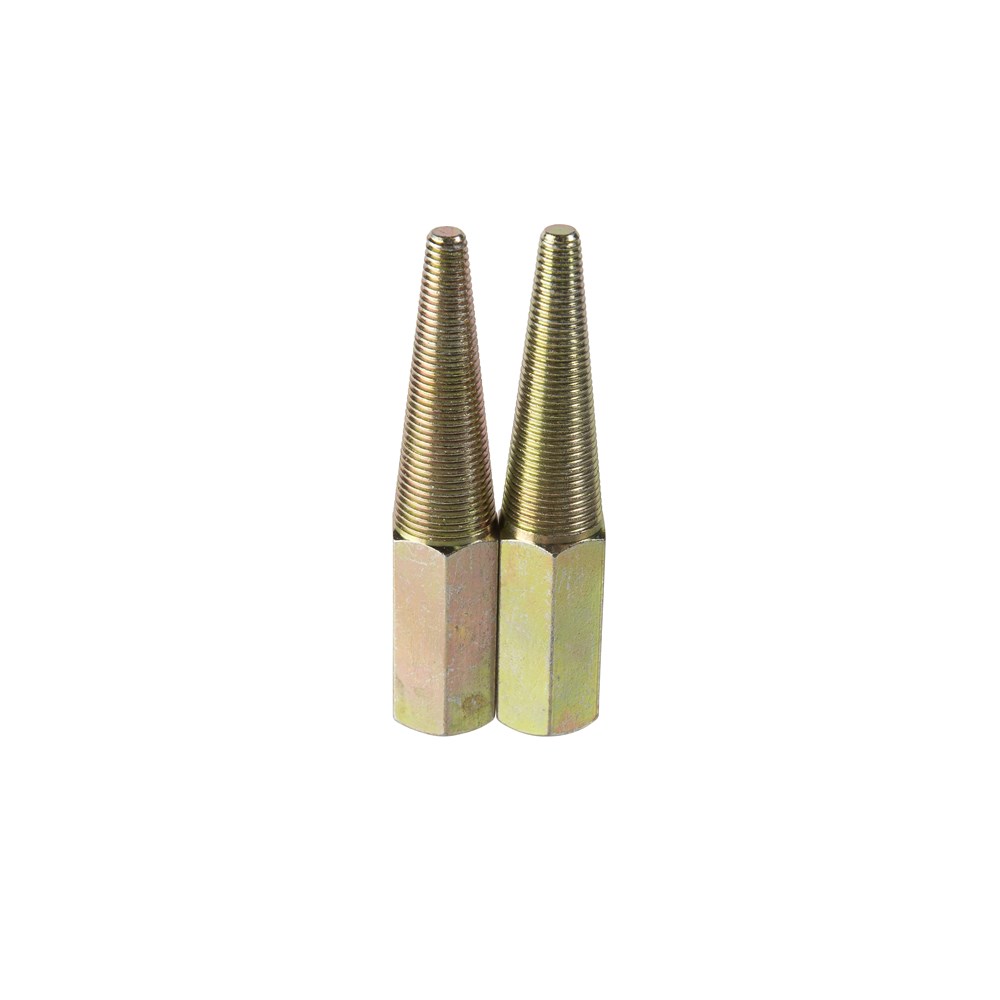

Union Tapered Spindles are used to adapt a Bench Grinder for use with Polishing and Buffing Wheels.
Union Tapered Spindles are available as sets , contains a metric and BSW Imperial internal; threaded hole to adapto to all common brands of bench grinder.
Available sizes are M12, 1/2'' BSW, M16 and 5/8'' BSW - for both the Left and Right Hand side of the grinder.
Quality product - Made in Taiwan
INSTRUCTIONS FOR FITTING A TAPERED SPINDLE TO A BENCH GRINDER:
Step 1: Remove outer guard, grinding wheel and inner guard from the side of the machine that the tapered spindle is to be fitted to.
Step 2: Screw on the tapered spindle. Note: the internal thread of the spindle is counter bored to allow the spindle to cover the entire grinder shaft length.
Step 3: Carefully screw the buff onto the tapered spindle with the thickest flange facing inwards. Screw on as far as the buff will reasonably fit.
Step 4: Turn on bench grinder and the buff will tighten further against the tapered spindle.
