Hydra Rainmaster Trio Kit for Non Potable Rainwater 90m Mesh 25m Polywound 10m Carbon Block Filters
Technical Specifications
| Brand | Atlas Filtri |
| Product Type | Hydra Self CleaningFilters |
| Flow Rate (L/min) | 91.6 |
| Material | Polypropylene/PET |
| Nominal Micron Rating | 10 |
| Inlet/Outlet | 1" |
| Min Pressure (bar) | 1.8 |
| Max Pressure (bar) | 8 |
| Min Temp (degrees celsius) | 4 |
| Max Temp (degrees celsius) | 45 |
| Application | Whole Supply |
Description

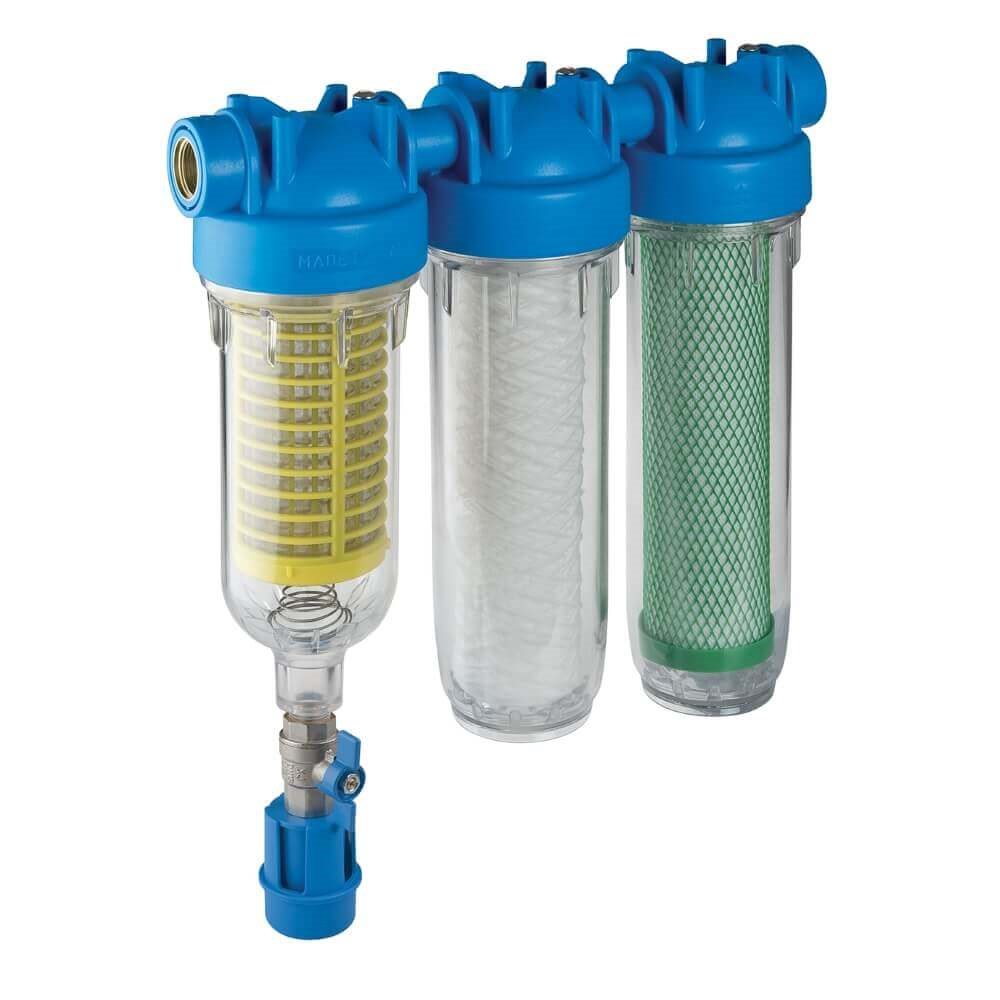

A Hydra Rainmaster Trio Self Cleaning Filter with 1” BSP Plastic inlet/outlet with 90 micron stainless steel mesh filter moulded to two 10” Std housings containing 25 micron depth sediment cartridge and a 10 micron eco friendly carbon block filter cartridge.
Specially Designed for sediment filtration on non-potable rain water supplies.
Flow rates up to 91lpm, however note that lower flows = lower pressure loss and better ability of the carbon to deal with odour.
The filter bowls are made from PET with exclusive ‘Atlas Green’ environmentally friendly manufacturing process. This clear filter bowl in combination with the included pressure gauges give an easy visual indicator of when the filter should be cleaned.
