Hydra DUO 10" STD Clear Self Cleaning Sediment Filter 90mic (Excluding 10" STD Cartridge)
Technical Specifications
| Brand | Atlas Filtri |
| Product Type | Hydra Self CleaningFilters |
| Flow Rate (L/min) | 95 |
| Material | Polypropylene/PET |
| Nominal Micron Rating | 90 |
| Inlet/Outlet | 1" |
| Min Pressure (bar) | 1.8 |
| Max Pressure (bar) | 8 |
| Min Temp (degrees celsius) | 4 |
| Max Temp (degrees celsius) | 45 |
| Application | Whole Supply |
Description

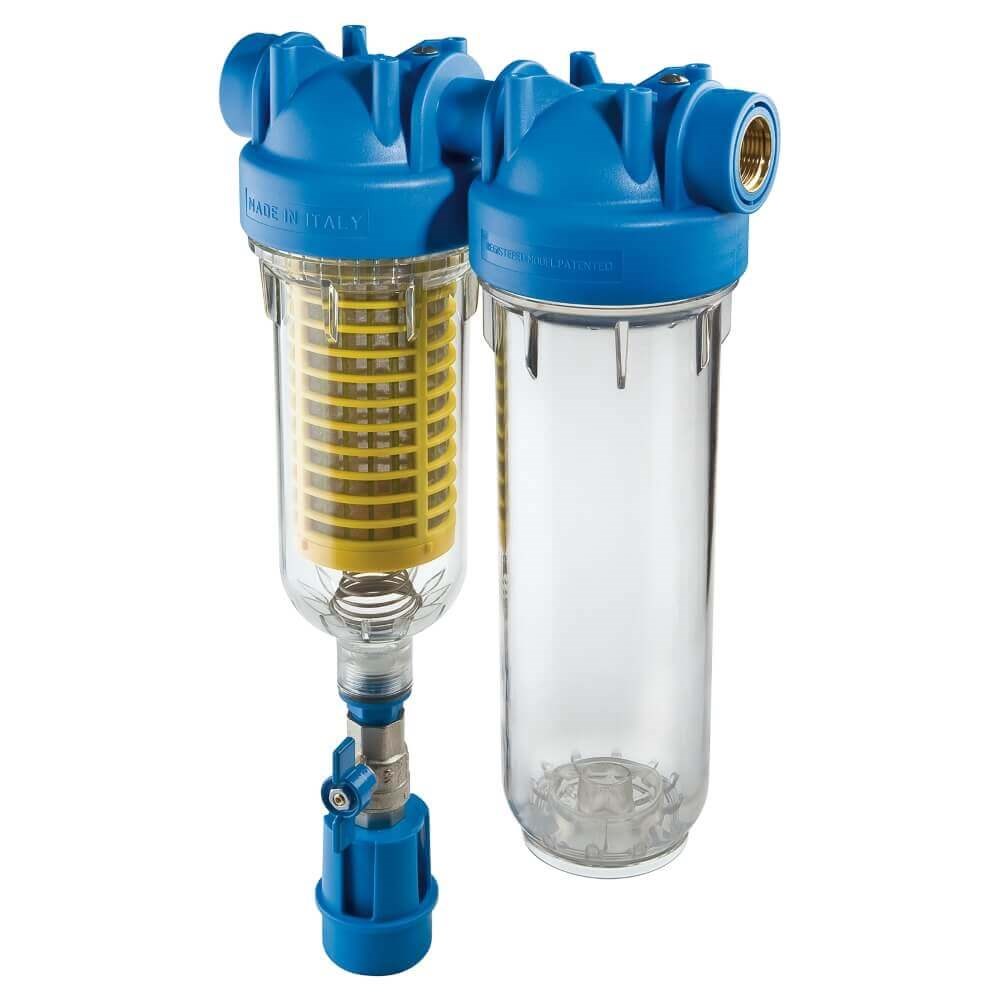

A Hydra Duo Self Cleaning Filter with 1” BSP Brass inlet/outlet with 90 micron stainless steel mesh filter moulded to an empty 10” standard housing.
For a complete solution – Just add a filter that suits your needs from our range of 10” standard filter cartridges.
Flow rates will vary depending on which filter cartridge you select.
Suitable for coarse sediment filtration on non-potable rain water supplies, municipal water supplies, as a pre-filter for water treatment on rural supplies as well as some commercial and industrial applications.
The filter bowls are made from PET with exclusive ‘Atlas Green’ environmentally friendly manufacturing process. This clear filter bowl in combination with the included pressure gauges give an easy visual indicator of when the filter should be cleaned.
