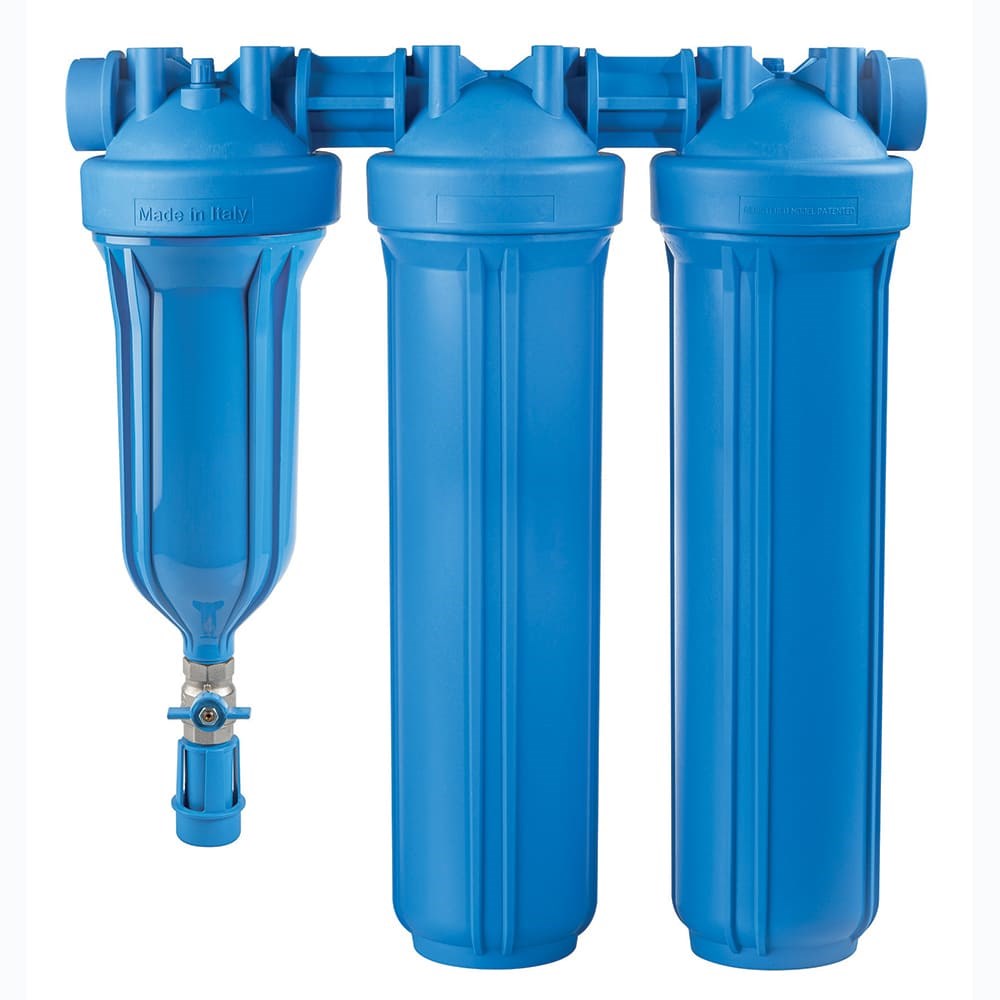

Hydra Blue TRIO 10" BIG Blue Self Cleaning Coarse Sediment Filter & 2 x 20" Filter Housings
- Head Reinforced Polypropylene
- Bowl PET
- O-ring Silicone
- Breather-valve Body Polypropylene O-ring EPDM
- Drain funnel Reinforced Polypropylene
- Gauges Radial type pressure range 0-12 bar, 0-170 psi
Technical Specifications
| Brand | Atlas Filtri |
| Product Type | Hydra Self CleaningFilters |
| Flow Rate (L/min) | 100 |
| Material | Polypropylene/PET |
| Nominal Micron Rating | 90 |
| Inlet/Outlet | 1.5" |
| Min Pressure (bar) | 1.8 |
| Max Pressure (bar) | 8 |
| Min Temp (degrees celsius) | 4 |
| Max Temp (degrees celsius) | 45 |
| Application | Whole Supply |
| Filter | Hydra |
Description
Hydra goes BIG with all of the features you have come to expect from the exceptional Hydra range but with BIGGER flows Fantastic for high flow low pressure drop applications with higher sediment loads.
Selected raw materials suitable for drinking water.
| Features | Benefits |
|---|---|
| Countercurrent Cleaning System | The reverse flow actively pushes dirt off the cartridge meaning you need to remove and clean the cartridge much less often |
| Hydra goes BIG | Bigger flows for bigger applications |
| 5 Year Filter Life | Save time & money |
| Excellent Pre-filter | Extends the life of other filters/valves installed after it |
| Automated Cleaning | Cleaning the filter is easy and only takes a minute but it can also be automated saving you even more time |
| Pressure Gauges or Ports | Using pressure gauges is an easy way to see when you need to clean your cartridge – no more unwanted pressure loss |
